Punching manipulator

5 axis swinging arm punching robot

()

2018-10-24 13:44

5 axis swinging arm punching robot

Technical characteristics

1、Special robot for stamping and hydraulic automation;

2、five axle turnover mechanism, product automatically turn over 180 degrees;

3、servo drive, stable performance, improve operation precision;

4、supporting the customer's existing machine tools, realizing automatic stamping;

5、easy to operate, friendly interface, convenient for staff to learn.

Scope of application

1、Single stamping process for sheet feeding and taking products, the location of the robot is flexible.

2、multi punching machine multi process transfer products, different tonnage punch, different height mold can be compatible, the replacement of the mold is convenient;

3、The molding process product needs to top out the lower die from the ejector mechanism, and the punch die needs to have the stripper plate.

4、It is suitable for a multi product to share an automatic stamping production line, which is quick in programming and easy to debug.

Supporting equipment

Material elevator and feed feed machine (one of them)

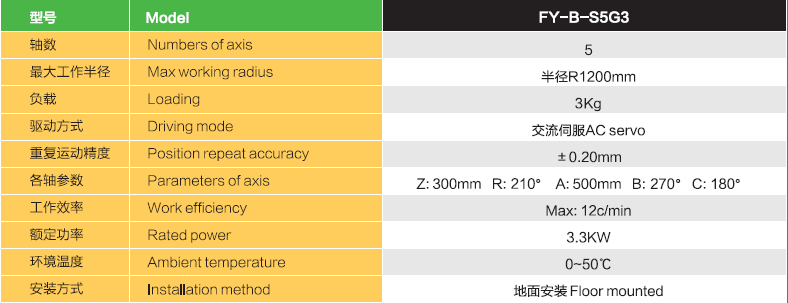

Specifications


   技术特点

1、冲压、液压自动化生产专用机器人;

2、五轴翻转机构,产品自动翻转180度;

3、伺服驱动,性能稳定,提高运行精度;

4、配套客户现有机床,实现自动冲压;

5、操作简便,界面友好,方便员工学习。

适用范围

1、单冲床单工序冲压送料、取产品,机器人安装位置灵活;

2、多冲床多工序移送产品,不同吨位冲床、不同高度模具可以兼容,更换模具方便;

3、成型工序产品需要由顶出机构顶出下模,冲孔模具需要有脱料板;

4、适合多产品共用一条自动冲压生产线,编程快捷,调试方便。

配套设备

材料升降机、进料送料机(两者选其一)
