Forging manipulator

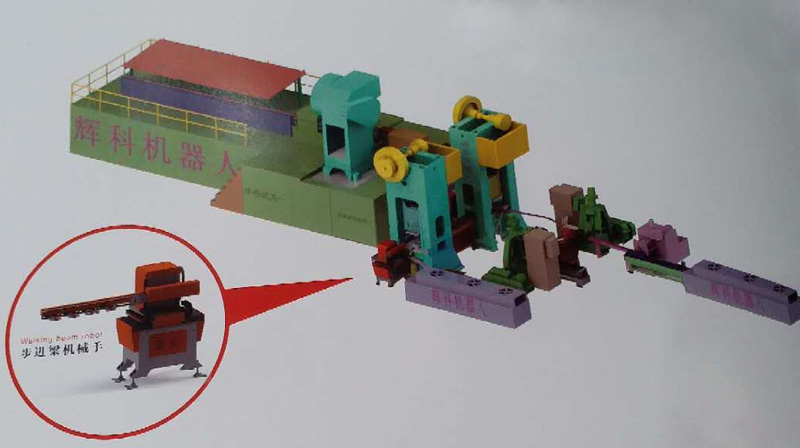

Fityou Automation Single Arm Walking Beam Forging Robot

(admin)

2019-09-28 20:25
Porduct Features:

1,high end equipment for automatic forging and pressing of single machine and multi process

2,three axis single arm step beam mechanism with high running speed

3,Independent institutions, easy to install

4,servo drive, stable performance, improve operation precision

5,easy to operate, friendly interface, convenient for employees to learn

Scope of application

1,The multi process forging of the single machine bed, the three axis motion of the manipulator, the manipulator installed in front of the machine tool.

2,The mechanical hand of the open punch press is arranged in the middle, and the mechanical hand of the closed punching machine is arranged laterally.

3,It is especially suitable for automatic forging of nut and bearing multi process products.

4,It is suitable for many kinds of products to share an automatic forging manipulator, which is quick in programming and easy to debug.





Applications:

Single machine with multiple forging procedure, the robot be installed in front of the machine

the opening punch be installed in the idle of the machine, the closing punch be installed by the side of the machine

suitable for nunts, bearing automatic forging

sutable for multiple product share robot, quick programing and debugging

Specifications:

Model         FY-B-T3D3H
Number of axis   X*Y*Z=350*250*150mm
Loading   3kgs
Motor   TW AC servo motor
position   ±0.2mm
Working eficiency   Max:25c/min
rated power   4.5KW
Ambient temperature   0~50℃
Installation method  floor mounted
